ปั๊มบ่อบาดาล EBARA รุ่น WINNER 4N Series ขนาด 4 นิ้ว เหมาะสำหรับการสูบน้ำสะอาดที่มีอุณหภูมิสูงสุดถึง 40°C ด้วยการออกแบบที่ทนทานและวัสดุคุณภาพสูง ทำให้มีอายุการใช้งานที่ยาวนานและเหมาะสมกับการใช้งานในสภาพแวดล้อมที่หลากหลาย
ปั๊มบ่อบาดาล EBARA รุ่น WINNER 4N Series ใช้สำหรับการสูบน้ำสะอาดที่มีอุณหภูมิสูงสุดถึง 40°C และสามารถรองรับสารที่มีคลอรีนไอออนและปริมาณทรายได้ในระดับที่สูง ปั๊มนี้ประกอบด้วยใบพัดแบบปิดชนิดหมุนแรงเหวี่ยง (Closed centrifugal impeller) ที่ช่วยให้ประสิทธิภาพในการสูบสูง และทนทานต่อการใช้งานที่ต้องการการป้องกันการรั่วไหลได้ดี
| PUMP | ||||||
|---|---|---|---|---|---|---|
| Liquid Handled | Type of liquid | Clean water | ||||
| Temperature [°C ] | Maximum 40 (depends on maximum temperature motor) | |||||
| Sand content | Maximum : 50 parts per million | |||||
| Chlorine ion density | Maximum : 500 parts per million | |||||
| Construction | Impeller | Closed centrifugal – Face clearance type | ||||
| Bearing | Sleeve type – Alumina (Ceramic) / EPDM rubber | |||||
| Pipe connection | Suction | N/A | ||||
| Discharge | G1 1/4 (models 4N1, 4N2, 4N4) UNI ISO 228 | |||||
| G2 (models 4N7, 4N10, 4N15) UNI ISO 228 | ||||||
| Material | Impeller | Ixef® (models 4N1, 4N2, 4N4, 4N7) | ||||
| Glass Fibre Reinforced PC (models 4N10, 4N15) | ||||||
| Intermediate casing | EN 1.4301 (AISI 304) | |||||
| Diffuser | PPE+PS Glass Fibre Reinforced | |||||
| Shaft | EN 1.4301 (AISI 304) | |||||
| Discharge casing | EN 1.4308 (ASTM CF8) | |||||
| Valve | EN 1.4301 (AISI 304) | |||||
| Bracket | EN 1.4308 (ASTM CF8) | |||||
| Applicable standard of test | ISO 9906 – Annex A | |||||
| MOTOR | ||||||
|---|---|---|---|---|---|---|
| Type | Submersible oil filled (type OY) | Submersible water filled (type WY) | ||||
| Manufacturer | Sumoto | Franklin | ||||
| Single phase | Three phase | Single phase | Three phase | |||
| Power rating | [kW] | 0.37÷2.2 | 0.37÷7.5 | 0.37÷2.2 | 0.37÷7.5 | |
| [HP] | 0.5÷3.0 | 0.5÷10 | 0.5÷3.0 | 0.5÷10 | ||
| No. of Poles | 2 | |||||
| Rated speed | Refer to each characteristic performance rotation speed as rated speed | |||||
| Insulation class | F | B | ||||
| Protection degree | IP 68 | IP 68 | ||||
| Maximum ambient temperature [°C ] | 35 | 30 | ||||
| Maximum immersion | [m] | 150 | 350 | |||
| Starts / hours | 30 | 20 | ||||
| Start type | Direct on line | |||||
| Frequency | [Hz] | 50 Hz | ||||
| Voltage | [V] | 230 ±10% | 380-415 ±10% | 230 -10%+6% | 380-415 -10%+6% | |
| Capacitor for start and run | Fitted in starter box |
– | Fitted in starter box |
– | ||
| Over load protection | Fitted in starter box |
Provided by the user | Fitted in starter box |
Provided by the user | ||
| Sealing liquid | Oil type: Marcol 82 (Esso) | Propylene Glycol 50% water solution | ||||
| Motor bracket | Cast iron nickel plated | EN 1.4301 (AISI 304) | ||||
| Casing material | EN 1.4301 (AISI 304) | |||||
| Power cable | material | EPDM/Cross Seald Polyethylene | ||||
| size | [mm2] | 4×1.5 | ||||
| lenght | [m] | L=1.75 (up to 2.2 kW) / L=2.5 (for 3 and 4 kW) / L=4 (for 5.5 and 7.5 kW) | ||||
| Flange mount | NEMA standard | |||||

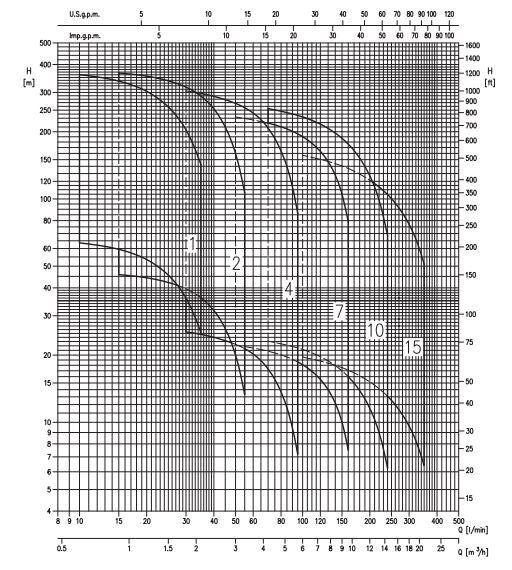

| Pump type | Power | Q=Capacity | |||||||||||
| l/min 0 | 10 | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 75 | 95 | |||
| m3/h 0 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.7 | 3.3 | 4.5 | 5.7 | |||
| [kW] | [HP] | H=Total Head | |||||||||||
| 4N1- 12 | 0.37 | 0.5 | 66.5 | 63.5 | 59.5 | 53.5 | 45.5 | 36 | 25.2 | – | – | – | – |
| 4N1- 18 | 0.55 | 0.7 | 100 | 95.5 | 89.5 | 80.5 | 68.5 | 54 | 37.8 | – | – | – | – |
| 4N1- 24 | 0.75 | 1.0 | 133 | 127 | 119 | 107 | 91 | 72 | 50.5 | – | – | – | – |
| 4N1- 34 | 1.10 | 1.5 | 189 | 180 | 169 | 152 | 129 | 102 | 71.5 | – | – | – | – |
| 4N1- 48 | 1.50 | 2.0 | 266 | 254 | 238 | 214 | 182 | 144 | 101 | – | – | – | – |
| 4N1- 68 | 2.20 | 3.0 | 377 | 360 | 337 | 303 | 258 | 204 | 142 | – | – | – | – |
| 4N2- 7 | 0.37 | 0.5 | 48.5 | – | 46 | 44.5 | 42.5 | 39.6 | 36.1 | 26.2 | 13.3 | – | – |
| 4N2- 10 | 0.55 | 0.7 | 69.3 | – | 65.5 | 63.5 | 60.5 | 56.5 | 51.5 | 37.5 | 19 | – | – |
| 4N2- 14 | 0.75 | 1.0 | 97 | – | 91.5 | 89 | 84.5 | 79 | 72 | 52.5 | 26.6 | – | – |
| 4N2- 20 | 1.10 | 1.5 | 139 | – | 131 | 127 | 121 | 113 | 103 | 75 | 38 | – | – |
| 4N2- 28 | 1.50 | 2.0 | 194 | – | 183 | 178 | 169 | 158 | 144 | 105 | 53 | – | – |
| 4N2- 40 | 2.20 | 3.0 | 277 | – | 262 | 254 | 242 | 226 | 206 | 150 | 76 | – | – |
| 4N2- 56 | 3.00 | 4.0 | 388 | – | 367 | 355 | 338 | 317 | 289 | 210 | 106 | – | – |
| 4N4- 4 | 0.37 | 0.5 | 27.8 | – | – | – | – | 25.4 | 24.8 | 23.2 | 21.4 | 15.5 | 7.2 |
| 4N4- 7 | 0.55 | 0.7 | 48.7 | – | – | – | – | 44.45 | 43.33 | 40.6 | 37.38 | 27.23 | 12.6 |
| 4N4- 9 | 0.75 | 1.0 | 62.6 | – | – | – | – | 57 | 55.5 | 52 | 48 | 35 | 16.2 |
| 4N4- 13 | 1.10 | 1.5 | 90.4 | – | – | – | – | 82.5 | 80.5 | 75.5 | 69.5 | 50.5 | 23.4 |
| 4N4- 18 | 1.50 | 2.0 | 125 | – | – | – | – | 114 | 111 | 104 | 96 | 70 | 32.4 |
| 4N4- 27 | 2.20 | 3.0 | 188 | – | – | – | – | 171 | 167 | 157 | 144 | 105 | 48.5 |
| 4N4- 36 | 3.00 | 4.0 | 250 | – | – | – | – | 229 | 223 | 209 | 192 | 140 | 65 |
| 4N4- 48 | 4.00 | 5.5 | 334 | – | – | – | – | 305 | 297 | 278 | 256 | 187 | 86.5 |
| Pump type | Power | Q=Capacity | |||||||||||
| l/min 0 | 50 | 70 | 100 | 130 | 160 | 200 | 240 | 280 | 320 | 350 | |||
| m3/h 0 | 3.0 | 4.2 | 6.0 | 7.8 | 9.6 | 12.0 | 14.4 | 16.8 | 19.2 | 21.0 | |||
| [kW] | [HP] | H=Total Head | |||||||||||
| 4N7- 4 | 0.55 | 0.7 | 24.8 | 22.2 | 20.8 | 18.1 | 14 | 7.5 | – | – | – | – | – |
| 4N7- 6 | 0.75 | 1.0 | 37.2 | 33.3 | 31.2 | 27.1 | 21 | 11.3 | – | – | – | – | – |
| 4N7- 8 | 1.10 | 1.5 | 49.5 | 44.5 | 41.5 | 36.2 | 28 | 15 | – | – | – | – | – |
| 4N7- 12 | 1.50 | 2.0 | 74.5 | 66.5 | 62.5 | 54.5 | 42 | 22.6 | – | – | – | – | – |
| 4N7- 17 | 2.20 | 3.0 | 105 | 94.5 | 88.5 | 77 | 59.5 | 32 | – | – | – | – | – |
| 4N7- 23 | 3.00 | 4.0 | 143 | 128 | 120 | 104 | 80.5 | 43.5 | – | – | – | – | – |
| 4N7- 30 | 4.00 | 5.5 | 186 | 166 | 156 | 136 | 105 | 56.5 | – | – | – | – | – |
| 4N7- 42 | 5.50 | 7.5 | 260 | 233 | 219 | 190 | 147 | 79 | – | – | – | – | – |
| 4N10- 4 | 0.75 | 1.0 | 25.7 | – | 23.1 | 21.2 | 18.8 | 16 | 11.5 | 6.2 | – | – | – |
| 4N10- 6 | 1.10 | 1.5 | 38.6 | – | 34.6 | 31.8 | 28.2 | 24 | 17.3 | 9.4 | – | – | – |
| 4N10- 8 | 1.50 | 2.0 | 51.5 | – | 46.2 | 42.5 | 37.7 | 32 | 23.1 | 12.5 | – | – | – |
| 4N10- 13 | 2.20 | 3.0 | 83.5 | – | 75 | 69 | 61 | 52 | 37.5 | 20.3 | – | – | – |
| 4N10- 17 | 3.00 | 4.0 | 109 | – | 98 | 90 | 80 | 68 | 49 | 26.5 | – | – | – |
| 4N10- 23 | 4.00 | 5.5 | 148 | – | 133 | 122 | 108 | 92 | 66.5 | 35.8 | – | – | – |
| 4N10- 32 | 5.50 | 7.5 | 206 | – | 185 | 170 | 151 | 128 | 92 | 50 | – | – | – |
| 4N10- 44 | 7.50 | 10.0 | 283 | – | 254 | 233 | 207 | 176 | 127 | 68.5 | – | – | – |
| 4N15- 4 | 1.10 | 1.5 | 25.5 | – | – | 23.5 | 22.4 | 21 | 18.9 | 16.3 | 13.3 | 9.8 | 7 |
| 4N15- 6 | 1.50 | 2.0 | 38.3 | – | – | 35.3 | 33.6 | 31.5 | 28.3 | 24.4 | 19.9 | 14.7 | 10.5 |
| 4N15- 8 | 2.20 | 3.0 | 51.1 | – | – | 47 | 45 | 42 | 37.7 | 32.5 | 26.5 | 19.6 | 14 |
| 4N15- 11 | 3.00 | 4.0 | 72.2 | – | – | 67.5 | 65 | 61.5 | 56 | 49.5 | 41.9 | 33.2 | 25.9 |
| 4N15- 14 | 4.00 | 5.5 | 91.9 | – | – | 86 | 82.5 | 78 | 71.5 | 63 | 53.5 | 42 | 33 |
| 4N15- 20 | 5.50 | 7.5 | 131 | – | – | 123 | 118 | 112 | 102 | 90 | 76 | 60.5 | 47 |
| 4N15- 27 | 7.50 | 10.0 | 177 | – | – | 166 | 159 | 151 | 137 | 121 | 103 | 81.5 | 63.5 |
* WINNER 4N7 – 4N10 – 4N15 not available for the European market
